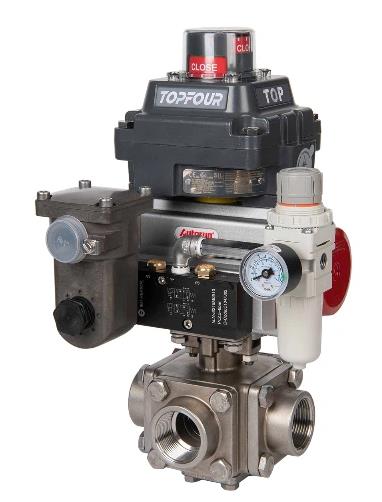

The Pneumatic Three-way High Ball Valve is an automatic control valve for high-pressure fluid systems. It is driven by a pneumatic actuator to achieve fast switching and precise control of the three-way fluid path.
Advantage
Strong high-pressure tolerance
The Pneumatic Three-way High Ball Valve adopts a thickened forged stainless steel valve body and a metal-reinforced sealing structure design. After pressure resistance testing, the entire valve can withstand a continuous working pressure of up to 200 bar, ensuring safety and stability in high-pressure systems.
Fast switching action
Relying on a high-response pneumatic actuator, the Pneumatic Three-way High Ball Valve achieves an opening and closing response time of less than 1 second. The ball core rotates 90° to complete the three-way path switching, meeting the control requirements of high-frequency regulation systems.
Reliable sealing performance
The Pneumatic Three-way High Ball Valve adopts a double sealing structure, with a combination of embedded PTFE and stainless steel pre-tightening seals, so it maintains an ultra-low leakage rate (<0.01%) under high pressure.
High control accuracy
Equipped with a pneumatic positioner that supports 4- 20mA analog signals, the Pneumatic Three-way High Ball Valve can achieve proportional control operation and accurately adjust the ball core angle to control the flow or pressure error within ±1%.
Full-bore design
The Pneumatic Three-way High Ball Valve is designed as a full-bore structure, and the internal channel is exactly the same as the pipe size, which greatly reduces the fluid pressure drop and energy consumption, and improves the fluid efficiency by more than 20%, especially suitable for high-flow occasions.
Easy installation and maintenance
The three-section structure makes the middle section of the Pneumatic Three-way High Ball Valve easy to disassemble and assemble, and the ball core or seal can be quickly replaced, shortening the overall maintenance time by 30%, which is particularly suitable for equipment maintenance requirements in continuous operation occasions.
