A: Pneumatic butterfly valves differ from ball valves in their design and operation. A butterfly valve uses a flat disc to control the flow, while a ball valve uses a spherical ball with a hole through it. Butterfly valves are more compact, lightweight, and economical, but they are less effective in high-pressure applications compared to ball valves. Additionally, ball valves provide a tighter seal and better precision for certain applications.

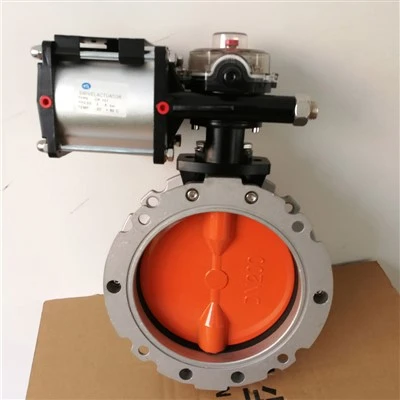

A: A pneumatic butterfly valve works by rotating a disc within the valve body, which is connected to a pneumatic actuator. When compressed air is supplied to the actuator, it turns the valve's stem, causing the disc to rotate. This rotation controls the flow by either opening, closing, or partially throttling the fluid passing through the valve.

A: The main components of a pneumatic butterfly valve include the valve body, the disc, the seat, the stem, and the pneumatic actuator. The valve body holds the components and connects to the pipeline, while the disc rotates to control the flow. The seat provides a sealing surface to prevent leakage, the stem connects the disc to the actuator, and the actuator uses air pressure to operate the valve.

A: Pneumatic butterfly valves are typically made from durable materials that vary depending on the application. Common materials for the valve body include cast iron, stainless steel, aluminum, or PVC. The disc is often made of stainless steel, cast iron, or coated materials like Teflon for additional resistance. The seat is usually made of EPDM, PTFE, NBR, or Viton to ensure sealing and chemical compatibility.

A: Pneumatic butterfly valves offer several advantages, including quick operation due to the rapid response of pneumatic actuators, compact design that requires less space compared to other valve types, and cost-effectiveness due to their simple construction. Additionally, they are highly versatile and can handle a wide range of fluids, and they integrate easily into automated control systems.

A: Pneumatic butterfly valves are commonly used in industries such as water and wastewater treatment, chemical processing, oil and gas, food and beverage, HVAC systems, power generation, and pulp and paper manufacturing.

A: Although pneumatic butterfly valves are versatile, they have some limitations. They are not ideal for applications involving high pressures, as they are typically designed for medium-pressure systems. The disc, which remains in the flow path even when the valve is open, can cause pressure drops and turbulence. Additionally, they may not provide precise throttling control compared to other valve types.

A: To choose the right pneumatic butterfly valve, you need to consider factors such as the size of the valve and its pressure rating, the compatibility of materials with the fluid being controlled, and the type of actuator (single-acting or double-acting) required. It is also important to assess the control requirements, such as whether the valve needs additional components like positioners or solenoid valves, and to ensure the valve is suited for the specific application, such as throttling or on/off control.

A: Maintaining a pneumatic butterfly valve involves several steps. It is important to regularly clean the disc and seat to remove deposits and debris. The valve should be inspected for signs of wear, leaks, or corrosion, and moving parts such as the stem should be lubricated to ensure smooth operation. Additionally, the actuator should be checked for proper functionality, and air supply lines should be kept clean and dry. Damaged or worn parts, such as seats and seals, should be replaced promptly.

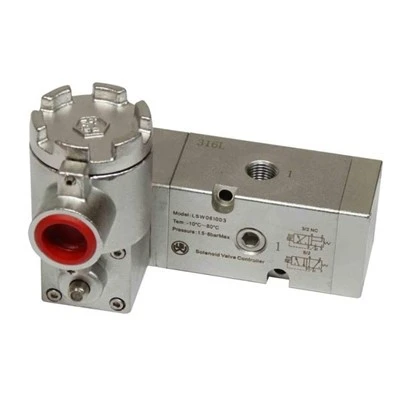

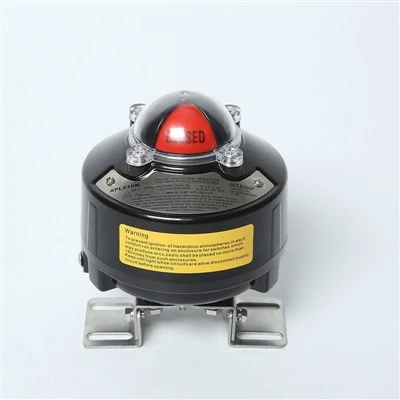

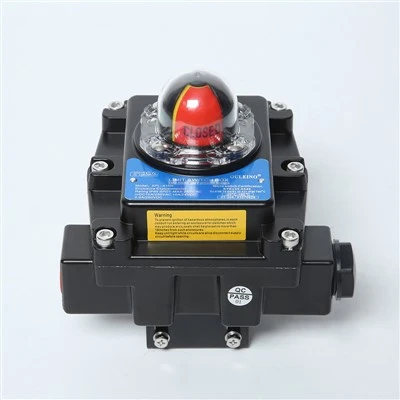

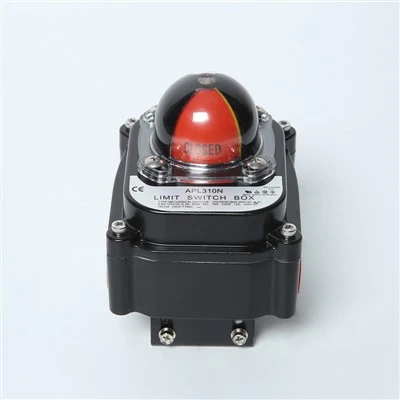

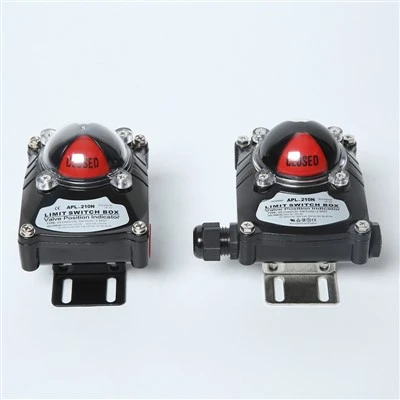

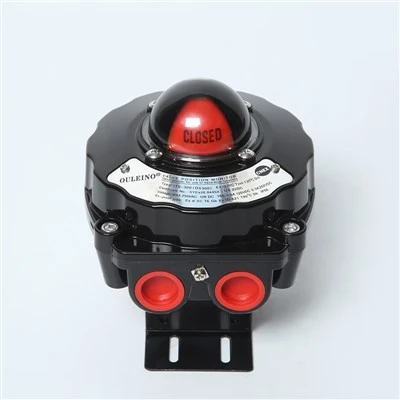

A: Yes, pneumatic butterfly valves are well-suited for automated systems. They can be equipped with accessories such as positioners, solenoid valves, and limit switches, which allow for precise and remote operation. This makes them ideal for integration into process control systems in industries requiring automation.

A: Lug-type pneumatic butterfly valves have threaded inserts that allow them to be bolted to flanges, making them suitable for end-of-line service or isolating pipeline sections. Wafer-type pneumatic butterfly valves, on the other hand, are designed to fit between flanges and are held in place by flange bolts. While wafer-type valves are more economical and lightweight, they are not suitable for end-of-line applications.
