Manual Transmission

Why Choose Us

Zhejiang Maikailun Automatic Control Valve Co., Ltd is a well recognized world leader and reliable manufacturer for pneumatic actuator and pneumatic valve in China. With over 20 years innovation and extensive industry experience, Maikailun provides ﬁrst class products and services for customers worldwide.

Wide Product Range

Maikailun supplies pneumatic actuators and valve control accessories such as manual override, limit switch box, solenoid valve, ﬁlter regulator, valve position feedback device etc.

Provide Solutions

Maikailun provides professional valve automation solutions like pneumatic ball valve, pneumatic butterﬂy valve etc. for diverse applications.

Quality Assurance

Our actuator ranges from Φ32~Φ400mm, torque covers from5Nm to 50000Nm.

Quick Response

Our commitment is to respond to your inquiries within 24 hours, ensuring that you receive the information and support you require in a timely manner.

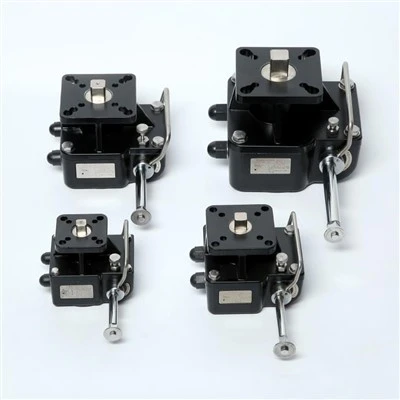

Declutchable Manual Gear Box
This declutchable manual gear box is also known as mechanical transmission, which could shift the shift lever by hand to change the gear meshing position in the transmission and change the...
read more

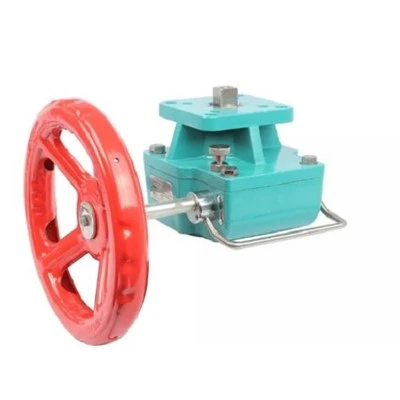

Declutchable Wormgear
Declutchable worm gear is used to control valves, dampers and others quarterturn devices simply and reliably when combining existing pneumatic actuators.
read more

Advantages of Manual Transmission

Easy to Maintain
For starters, most manual transmissions tend to be less complex than automatics, meaning that fewer things go wrong in the first place. The only repair item frequently seen is the clutch and that component usually doesn't require changing until you've driven hundreds of thousands of miles, under ideal conditions.

Long Maintenance Cycle
Unlike automatic transmission fluid (ATF), it doesn't deteriorate as quickly over time and it doesn't need frequent changes. Some manufacturers even suggest that manual transmission car fluids don't need changing unless there's a leak or after repairs have been completed.

Fuel Economy
Parasitic power losses from the torque converter and hydraulic pump can rob an automatic-equipped car of a small percentage of its power, along with its fuel efficiency. Depending on driving style and road conditions, drivers can increase their fuel economy by as much as 15 percent.

More Control
With manual transmissions, you can shift at any engine speed from any transmission gear, allowing you more control over your engine's torque and power.

Less Expensive
Manual transmission vehicles have fewer moving parts than automatic vehicles, resulting in a lower initial buying price. In addition, fewer moving parts means fewer parts that can be damaged, resulting in lower repair costs.

More Fun
Alternating the clutch, fuel, and brakes keeps you more involved in your driving. In addition, a manual car presents a chance to learn new driving tactics in different situations, as well as take advantage of your engine's real power.

Fewer Distractions
With a manual transmission, more concentration is required to properly operate the clutch, brakes, fuel, gears, and steering wheel.

Types of Manual Transmission

Sliding Mesh Gearbox
The sliding mesh gearbox represents the earliest design of the manual transmission. In this configuration, gear shifting involves sliding gears along a splined main shaft to engage with the appropriate gear on the lay shaft. One of the lay shaft's gears remains in constant mesh with the clutch shaft gear to transfer rotational motion, allowing for the conversion between high torque and high speed as needed.

Constant Mesh Gearbox
Evolving from the sliding mesh design, the constant mesh gearbox addressed several limitations. In this type, all gears on the main shaft, lay shaft, and clutch shaft are in constant mesh with each other. The appropriate gear is selected using specialised meshing devices called dog clutches, which slide over the splined main shaft to engage the desired gear.

Synchromesh Gearbox
The synchromesh gearbox represents a significant advancement in manual transmission technology. In this design, synchronizers (synchromesh devices) are employed between the gears and the collar to facilitate smoother gear engagement. These devices allow the collar to engage the gear, even when there is a speed differential between the two components.

Components of Manual Transmission

Clutch Pedal
The clutch pedal in a manual transmission system is a hydraulically controlled component that serves the crucial function of disengaging the clutch when you depress it. This action allows for the separation of the engine from the transmission, enabling gear changes and preventing the transmission from being continuously linked to the engine's output.

Clutch
The clutch comprises essential elements such as the pressure plate, diaphragm spring, clutch disc, throw-out bearing, and various smaller components. At its core, the clutch disc, a friction pad, is sandwiched between the flywheel and the pressure plate, serving as a critical interface for transmitting power from the engine to the transmission.

Flywheel
The flywheel mass possesses a smooth surface that interacts with the clutch disc. By maintaining this connection, the flywheel ensures the continuous transfer of power from the engine to the transmission.

Selector Fork
When operated through the gear shift lever, it moves the collars along the output shaft to select different gears, allowing the driver to engage the desired gear.

Collar(s)
Collars slide between the gears and can mesh with them. The collar is splined to the output shaft while the gears rotate with the layshaft. Locking the collar with a selected gear effectively transmits engine torque from the layshaft to the output shaft.

Synchronizers
Synchronizers are positioned between the gears and the collar and serve a vital role in allowing the collar to engage with the gear, even when there is a speed differential between the two components. This synchronization mechanism facilitates smoother gear engagement by matching the rotational speed of the gear and the collar.

Shafts
A manual transmission typically consists of three key shafts. The main shaft, also known as the output shaft, houses gears, the gear lever, and meshing devices like dog clutches and synchromesh mechanisms. The lay shaft, or counter shaft, acts as an intermediary between the clutch shaft and the main shaft, facilitating power transfer from the engine. The clutch shaft carries the engine's rotational output to the transmission, engaging and disengaging this output through the clutch mechanism.

Gears
Larger gears increase torque but limit maximum speeds, while smaller gears with fewer teeth offer less torque but allow for higher-speed travel.

Frequently Asked Questions

Q: Is it difficult to learn how to drive a manual transmission?

A: Learning how to drive a manual transmission can be challenging for some people because it requires coordination between the clutch, brake, and accelerator pedals while also shifting gears. However, with practice and patience, most people can learn to drive a manual transmission. It is helpful to practice in a safe, controlled environment before driving in traffic.

Q: How does a manual transmission work?

A: A manual transmission works by using a clutch pedal to disconnect the engine from the transmission, allowing the driver to manually shift gears. When the clutch pedal is pressed, the clutch disengages, enabling the driver to move the gear stick to select a higher or lower gear. Once the desired gear is selected, the clutch is released, re-engaging the engine to the transmission and transferring power to the wheels.

Q: What are the advantages of a manual transmission?

A: Manual transmissions offer several advantages, including better control over the vehicle, especially in challenging driving conditions such as off-roading or driving on steep hills. They also typically provide better fuel efficiency because the driver has control over when to shift gears. Additionally, manual transmissions are often simpler and less expensive to maintain than automatic transmissions.

Q: What are the disadvantages of a manual transmission?

A: The disadvantages of a manual transmission include the need for more driver involvement, which can be tiring in heavy traffic or during long drives. It can also be more difficult for beginners to learn and requires more skill to operate smoothly. Furthermore, manual transmissions are becoming less common in modern vehicles, making them harder to find and potentially lowering resale value.

Q: How do you shift gears in a manual transmission?

A: To shift gears in a manual transmission, the driver must press the clutch pedal to disengage the engine from the transmission. Then, the driver moves the gear stick to the desired gear position. Once the gear is engaged, the clutch is slowly released, allowing the engine to reconnect with the transmission, and the vehicle begins to move in the selected gear.

Q: What is the purpose of the clutch in a manual transmission?

A: The clutch in a manual transmission serves to temporarily disconnect the engine from the transmission, allowing the driver to shift gears without damaging the system. By disengaging the engine from the drivetrain, the clutch provides the driver with the ability to change gears smoothly, whether shifting up or down, and prevents the engine from stalling when the vehicle is at low speeds.

Q: How do you prevent stalling in a manual transmission?

A: To prevent stalling in a manual transmission, the driver must ensure that the engine is operating at an appropriate speed for the selected gear. When starting from a stop, the driver should gradually release the clutch while simultaneously pressing the accelerator to provide enough power to the engine. If the clutch is released too quickly without enough throttle, the engine may stall.

Q: What is the difference between a manual and automatic transmission?

A: The main difference between a manual and an automatic transmission is how the gears are shifted. In a manual transmission, the driver manually selects the gears using a clutch pedal and gear stick, whereas an automatic transmission shifts gears automatically without the need for driver input. This makes automatic transmissions easier to use, especially in traffic, while manual transmissions offer more control and can be more fuel-efficient.

Q: Are manual transmissions more fuel-efficient than automatic transmissions?

A: In many cases, manual transmissions are more fuel-efficient than automatic transmissions because they allow the driver to control the engine's RPM and shift at the optimal moment for fuel efficiency. However, modern automatic transmissions, especially those with advanced technologies like CVTs (Continuously Variable Transmissions) and dual-clutch systems, have narrowed the fuel efficiency gap, and in some cases, they can now offer better fuel economy than manual transmissions.

Q: How long does a manual transmission last?

A: A well-maintained manual transmission can last for a long time, often upwards of 100,000 miles or more. The lifespan of the transmission depends on factors such as how often it is used, how well it is maintained, and how the vehicle is driven. Properly using the clutch and avoiding riding the clutch can help extend the life of the transmission.

Q: Can manual transmissions be repaired?

A: Yes, manual transmissions can be repaired if there are issues such as worn-out gears, a malfunctioning clutch, or damaged synchronizers. Repairing a manual transmission is often more cost-effective than replacing it entirely, but the complexity and cost of repairs depend on the specific problem. Regular maintenance, such as checking and changing transmission fluid, can help prevent major issues and prolong the life of the transmission.

Q: Why are manual transmissions less common in modern vehicles?

A: Manual transmissions are less common in modern vehicles due to several factors, including the convenience of automatic transmissions, which require less driver input. Automatic transmissions are also becoming more fuel-efficient, making them more attractive to consumers. Additionally, many modern cars are equipped with advanced technologies such as CVTs and dual-clutch systems, which offer smoother shifting and better fuel economy, further reducing the demand for manual transmissions.

Q: Can you drive a manual transmission in heavy traffic?

A: Driving a manual transmission in heavy traffic can be challenging and tiring due to the constant need to engage and disengage the clutch while shifting gears. However, it is entirely possible with practice, and some drivers prefer the control that a manual transmission offers in stop-and-go traffic. Using proper techniques, such as anticipating traffic flow and managing the clutch effectively, can help reduce fatigue in these situations.

As one of the most professional manual transmission manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy high-grade manual transmission in stock here from our factory.

Declutchable Wormgear, manual transmission, Declutchable Manual Gear Box
