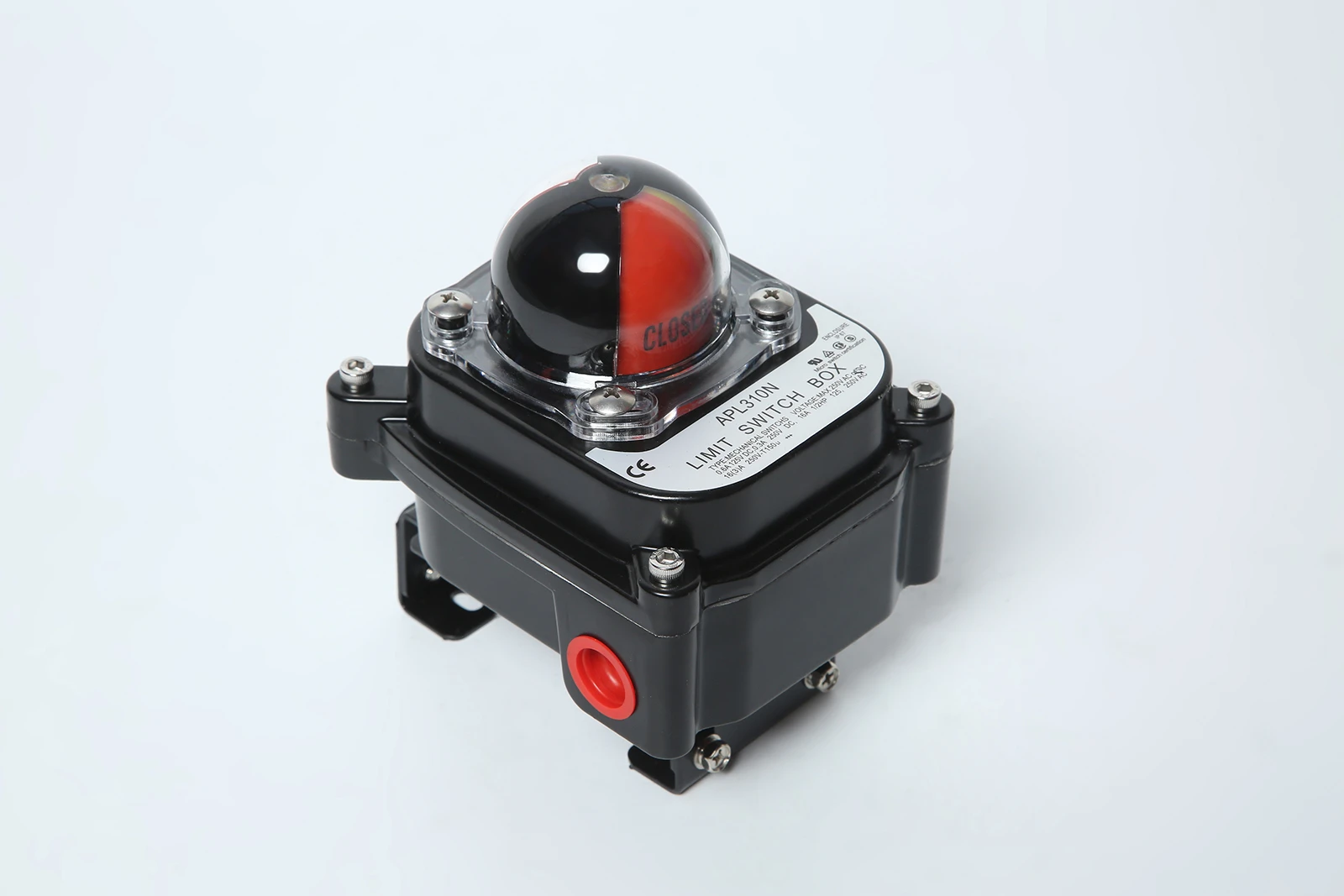

APL-310N limit switch feedback device is used for pneumatic butterfly valve, ball valve and other 90 degree rotary valves open in place, close in place signal feedback. Built-in 4 SPDT SPDT SPDT single-pole double-throw mechanical limit switches.
Parameter
|
Degree of protection |
IP67/NEMA4&4 (standard) IP68 optional |
|
Additional limit switches |
3~4 mechanical switches |
|
Additional terminals |
8-16 points |
|
Micro Switch |
2× SPDT (Standard) |
|
Optional |
2×DPDT2×SPDT+0-1k2×DPDT+4-20mA |
|
Sensor switch |
AUTONICSP+F -The switch position can be displayed by the indicator - Two-wire interface: Dual 3/4 tube interface - Terminal block: 8 o'clock - Anti-disconnection bolts - Easy to install, stainless steel spindle and mounting bracket in accordance with NAMUR standard |
Features
● Sturdy and beautiful design
● Die-cast aluminum alloy shell, powder coated
● The position of the switch can be clearly identified by the indicator
● Quick device cam, adjustable cam is installed by spline and spring
● The position of the switch cam can be quickly adjusted without tools
● Two-wire interface (APL-5N spring bolt)
● Anti-disconnection bolts
● The bolt will not fall off when it is attached to the upper cover during disassembly
● APL-5N spring bolts

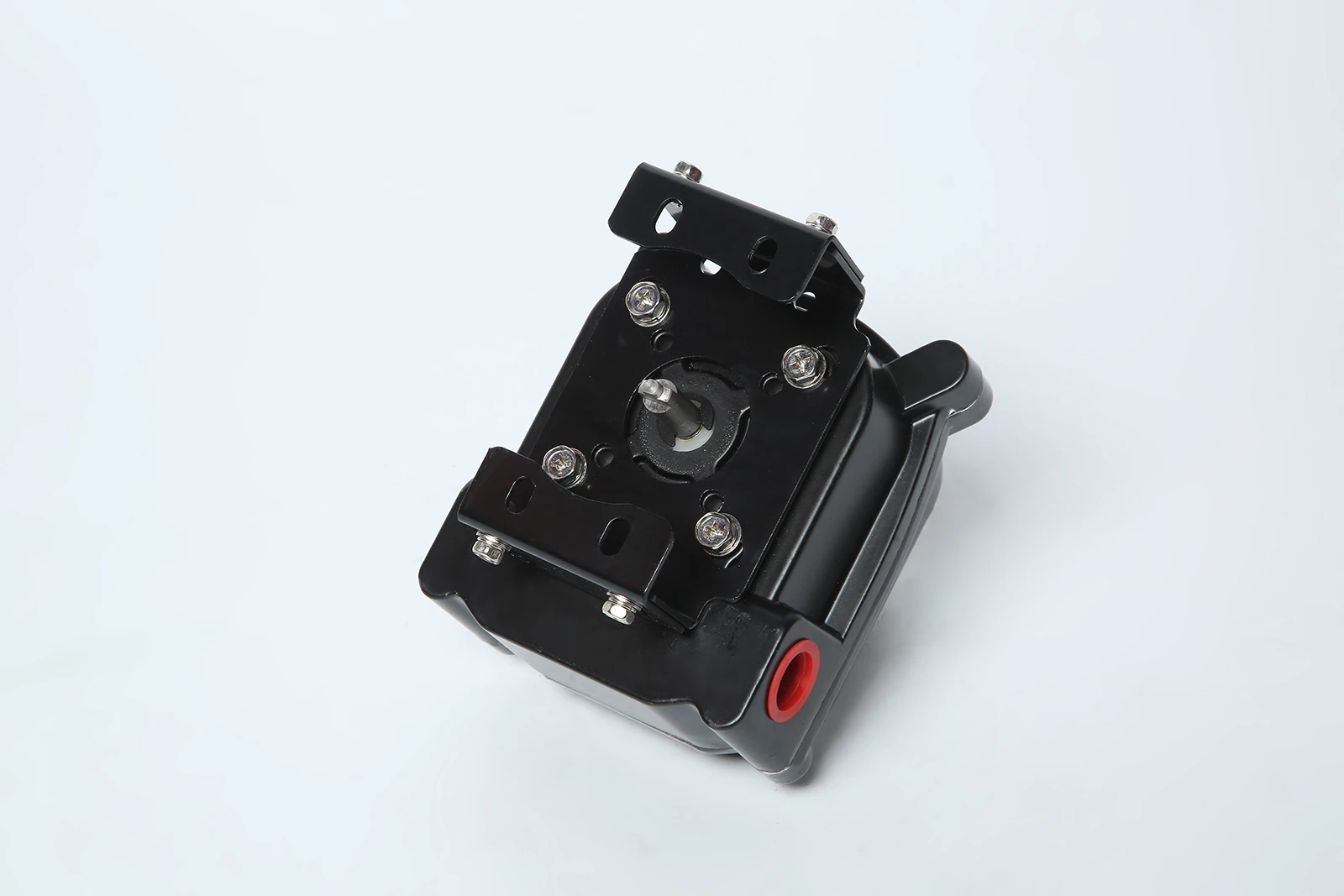

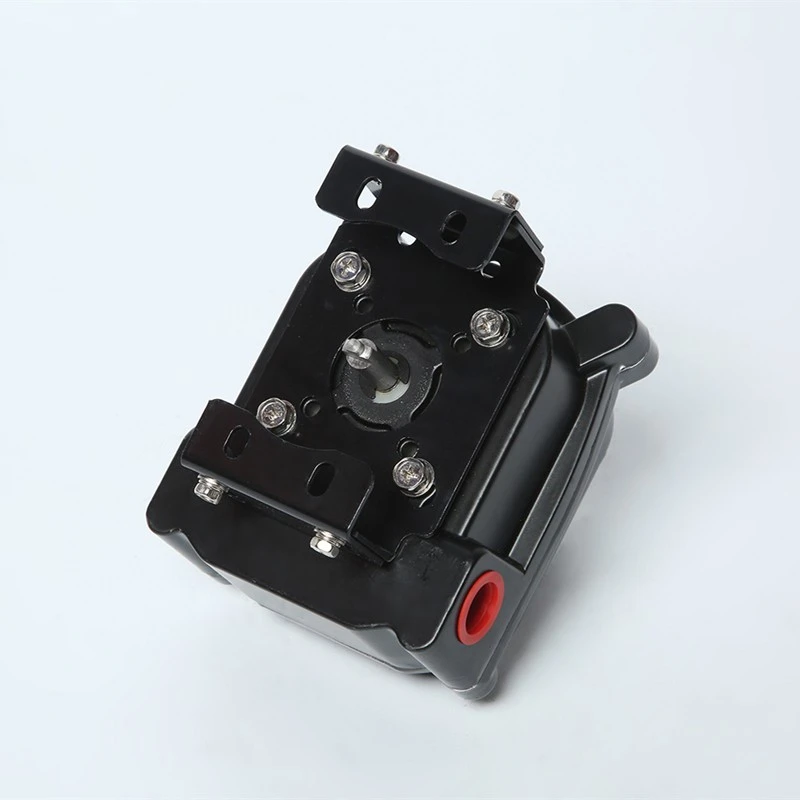

● Easy to install, stainless steel spindle connection part and mounting bracket
● All comply with NAMUR standards
