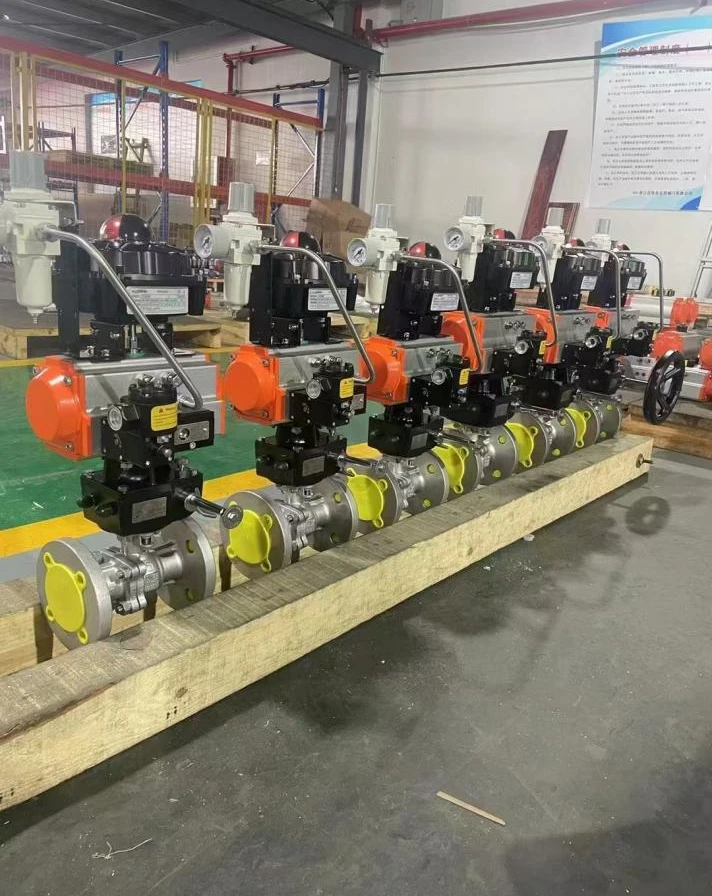

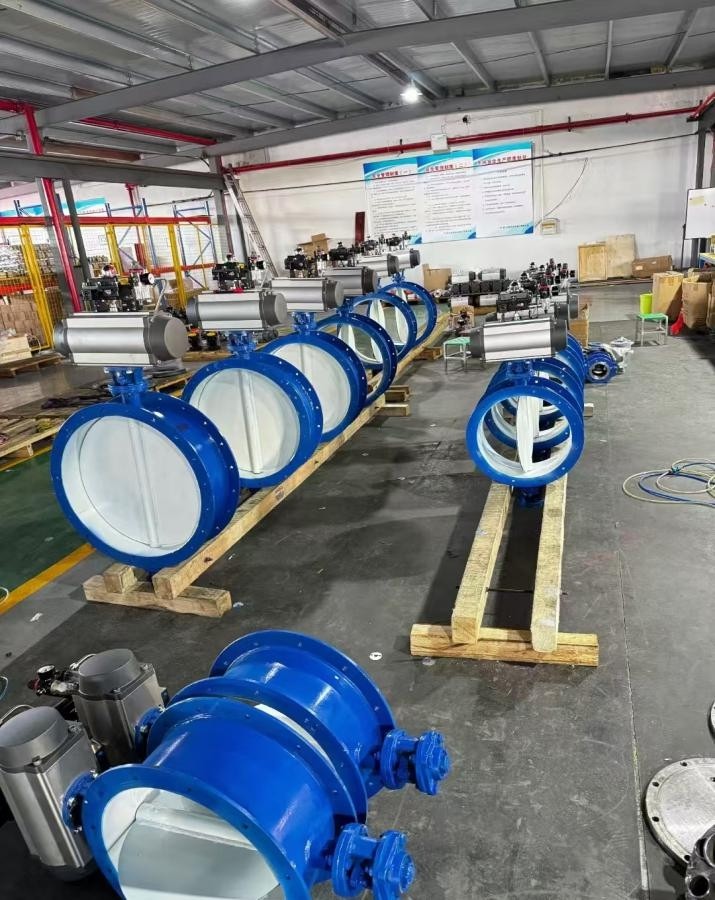

90-degree pneumatic cylinder is an actuator driven by compressed air. It is widely used in valve driving, mechanical arm rotation, and other occasions, and can achieve precise 90-degree rotation.
specification
|
Pressure Range |
0.2-1MPa |
|
Rotate Range |
90° |
|
Specification |
CE, ISO9001 |
|
Origin |
Wenzhou, China |
|
Production Capacity |
200,000/Year |
|
Size |
32-400 |
|
Largest Torque |
7800nm |
|
Transport Package |
Shrink Film+Carton+Plywood Case |
|
Trademark |
MaiKailun |
|
HS Code |
841239000 |
|
Pressure Range |
Max. Working pressure 10 bar |
|
Air pressure |
2.5bar~8bar |
|
Adjustment Range |
90° ± 5° |
|
Ambient temperature |
-20 ~ +90° C |
|
Type |
Double acting, Single acting (spring return) |
|
Optional accessories |
Solenoid valve, limit switch, electric position, air regulator |
|
Lubrication |
All the moving parts are coated with lubricants, extending their service life |
|
Life Time |
One million times |
feature
High control accuracy
The 90 Degree Pneumatic Cylinder adopts a precision-machined integrated gear rack transmission mechanism to ensure that the rotation angle is accurately controlled within ±0.5°, meeting international standards such as ISO5211 and DIN3337, effectively avoiding motion errors and improving the operation stability of the entire control system.
Fast response speed
Through the internal optimized intake and exhaust channel design and efficient piston structure, the 90-degree pneumatic cylinder can achieve a minimum rotation response speed of 0.3 seconds per time.
Strong structural durability
The cylinder body is made of ASTM6005 high-strength aluminum alloy and is hard-anodized. It has excellent wear resistance and corrosion resistance, allowing the 90 Degree Pneumatic Cylinder to maintain a stable operation cycle of more than 1 million times under high load and high-frequency environments.
High adjustment flexibility
The 90 Degree Pneumatic Cylinder is equipped with a two-way external limit adjustment bolt, which can achieve 90°±5° rotation angle fine adjustment. Users can flexibly set it according to actual working conditions.
Strong installation compatibility
The top of the cylinder integrates the NAMUR standard installation interface, which is convenient for installing limit switches, position indicators, solenoid valves, and other intelligent accessories, realizing remote control and signal feedback of the 90 90-degree pneumatic Cylinder, and easily integrating it into the automation control system.
