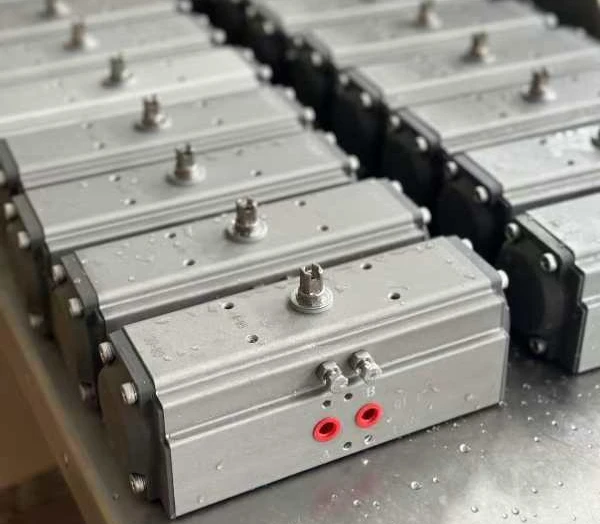

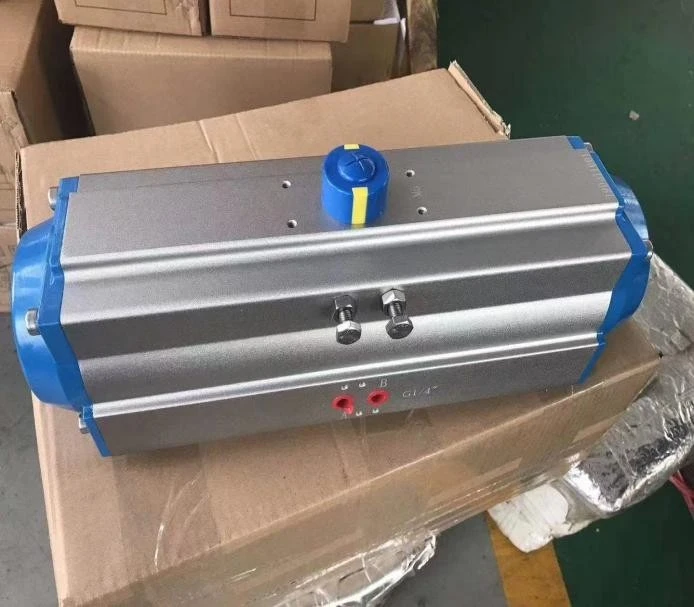

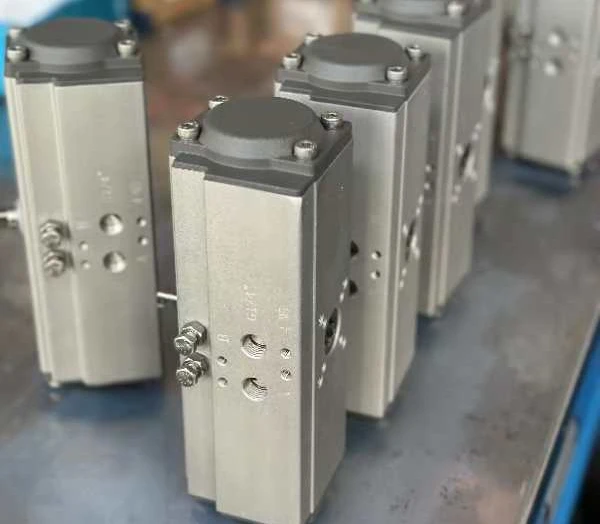

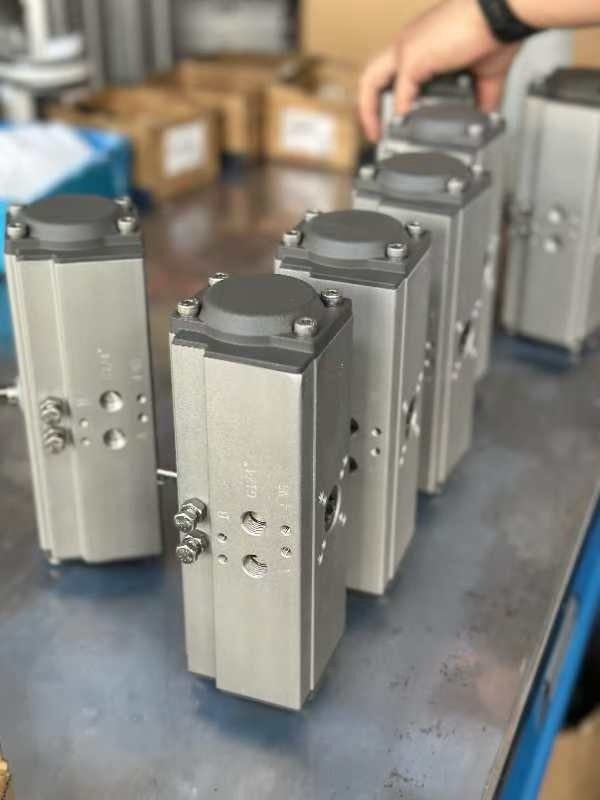

180 Degree Pneumatic Cylinder is an actuator that uses air pressure to drive the opening and closing or regulating valve. It is also called a pneumatic actuator or pneumatic device, but it is generally called a pneumatic head. Commonly used are valve positioners and handwheel mechanisms.

Specification

Air pressure	2.5bar~8bar
Rotation angle	0° to 180°. Adjustable +5° to -5°
Type	Double acting, Single acting (spring return)
Ambient temperature	-20 ~ +80° C
Optional accessories	Air regulator, Solenoid valve, Limit switch box, Electro-pneumatic positioner
Lubrication	All the moving parts are coated with lubricants, extending service life
Surface material	Hard anodized

Body	Extruded aluminium, anodizing
Pistons	Die-casted aluminium alloy
Drive Shaft	Carbon steel, nickel plated
Cam	Stainless steel
Seals	Nitrile
Springs (spring return model)	Pre-compressed cartridges, polyester coating
End Covers	Die-cast aluminium, polyester coating
Fasteners	304 stainless steel
Pilot Air Connection	G1/8", G1/4" and standard Namur solenoid mounting pad

Advantages

180 Degree Pneumatic Cylinder is a stainless steel pneumatic actuator with small size, compact structure, energy saving and high performance. This pneumatic actuator has high strength, wear resistance and corrosion resistance, excellent sealing performance and high and low temperature resistance. It has a switching frequency of more than 1 million times and a long service life, which is suitable for working conditions with extremely high corrosion resistance. It can completely replace similar imported products, especially for offshore drilling platforms, shipbuilding, pharmaceutical and food hygiene.
